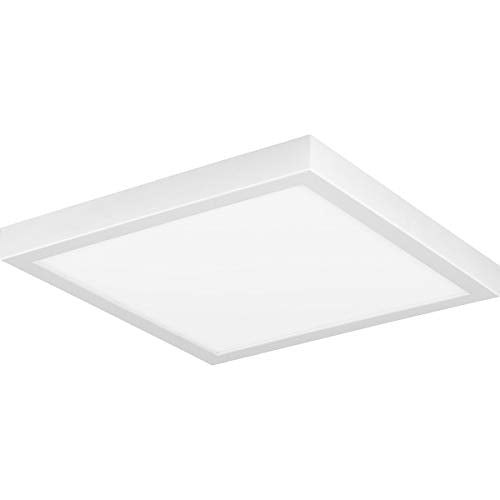

Progress P810020-030-30 Everlume Collection White 11" Edgelit Square

Product Description:

Edgelit technology creates a large glare-free and evenly illuminated surface for a variety of applications for both residential and commercial settings. Offering a low-profile design, LED Flush Mount is available in three sizes: 7", 11", and 14", in a White finish. The integrated driver does not recess into junction box, allowing for easy installation into 4" octagonal, 4" round PVC and 4-1/2" ceiling pan junction boxes. Wet location listed and offers a 50,000-hour LED life.

Features

-- 11� square Everlume Edgelit surface mount with LED technology 3000K, 90 CRI, 1400 lumens (delivered)
-- Simple installation to steel mounting plate
-- Fixture is adjustable after installation, allowing for easy alignment
-- Light weight non-conductive polycarbonate luminaire construction
-- Polycarbonate diffuser and acrylic light guide controls glare and provides an evenly illuminated surface
-- Integrated DC LED power supply capable of flicker-free dimming to 10% brightness with many Triac/Forward Phase or ELV/Reverse Phase dimmers
-- Can be installed to 4" octagonal j-box, 4x1/2" round shallow j-box and 4" round PVC j-box
-- Can be mounted on ceiling or wall
-- Suitable for use in IC or Non-IC applications
-- Meets California Title 24 JA8-2019 and is Energy Star listed
-- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements.
-- Maximum 25 luminaires on a circuit (without dimmer).
-- 50,000 hour rated lifetime

Details

Product Type: Lighting Fixtures
Category: Flush Mount
Collection Name: Everlume
Part Number: P810020-030-30
Finish: White
Glass: Diffused
Shade Material: Polycarbonate

Measurements

Fixture Weight (lb): 2.94
Height (in): 1-1/8
Length (in): 11
Width (in): 11"
Wire Length (in): 6

Lamping

Bulb Qty: 1
Bulb Wattage: 17 W
Bulb Included: Yes
Color Temp: 3000 K
Lumens: 1400 lm
Efficiency: 84 Lum/Watt
CRI: 90
Life (hours): 50000
Bulb Type: LED
Bulb Base: Integrated
Voltage: 120 V
Dimming Protocol: Triac/Forward Phase;ELV/Reverse Phase

Specifications

Frequency Rating: 60 Hz
ENERGY STAR Certified: Yes
Certified Listed: cCSAus
Certified Listed Location: Wet Location Listed
Material: Polycarbonate
Title 24: Yes
Warranty Length: 5 year warranty
Country of Origin: CN

Shipping

Carton Height (in): 12.5
Carton Length (in): 11.25
Carton Width (in): 1.75
Carton Weight (lb): 3.31
Ship Method: UPS/FedEx
UPC: 785247243921
