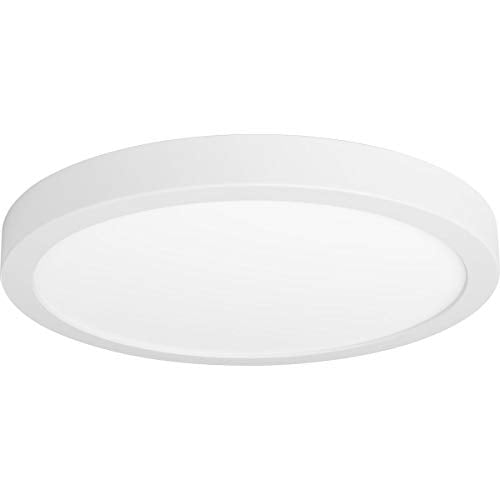

Progress P810016-030-30 Everlume Collection 11" Edgelit Surface Mount

Product Description:

The P810016 Edgelit Flush Mount delivers a solution for both residential and commercial markets. The Edgelit technology provides a bright and evenly illuminated surface in a very slim profile. The integrated LED power supply does not protrude into the junction box, allowing for compatibility to 4" octagonal, 4" round shallow and 4" round PVC junction boxes. This surface mounted luminaire measures 11" in diameter with an overall height of 1". In addition, the P810016 is wet location rated, Title 24 � JA8 � 2016 listed, ENERGY STAR listed and is a cost effective solution for fire rated applications (when installed onto a fire rated junction box). The P810016 luminaire combines modern aesthetic, new technology, performance, cost and safety benefits.

Features

-- Simple installation to steel mounting plate
-- Light weight polycarbonate luminaire construction
-- Polycarbonate diffuser controls glare and provides an evenly illuminated surface
-- 1325 lumens (delivered), 90CRI, 3000K
-- Integrated DC LED power supply capable of flicker-free dimming to 10% brightness with many Triac/Forward Phase dimmers (See Dimming Notes)
-- Can be installed to 4" octagonal j-box, 4x1/2" round shallow j-box and 4" round PVC j-box
-- Suitable for use in IC or Non-IC applications
-- Meets California Title 24 JA8-2016 and is Energy Star listed
-- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements.

Details

Product Type: Lighting Fixtures
Collection Name: Everlume
Part Number: P810016-030-30
Finish: White
Glass: White
Shade Material: Polycarbonate
Room Type: Closets, Pantry, Bedroom, Hall & Foyer, Kitchen

Measurements

Fixture Weight (lb): 2.69
Height (in): 1-1/8
Length (in): 11
Width (in): 11"
Wire Length (in): 6

Lamping

Bulb Qty: 1
Bulb Wattage: 17 W
Bulb Included: Yes
Color Temp: 3000 K
Lumens: 1325 lm
Efficiency: 77 Lum/Watt
CRI: 90
Life (hours): 50000
Bulb Type: LED
Bulb Base: Integrated
Voltage: 120 V
Dimming Protocol: Triac/Forward Phase;ELV/Reverse Phase

Specifications

Frequency Rating: 60 Hz
ENERGY STAR Certified: Yes
Certified Listed: cCSAus
Certified Listed Location: Wet Location Listed
Material: Aluminum/Plastic
Title 24: Yes
Warranty Length: 5-year Limited Warranty
Country of Origin: CN

Shipping

Carton Height (in): 11.12
Carton Length (in): 11.12
Carton Width (in): 1.5
Carton Weight (lb): 2.88
Ship Method: UPS/FedEx
UPC: 785247225859
