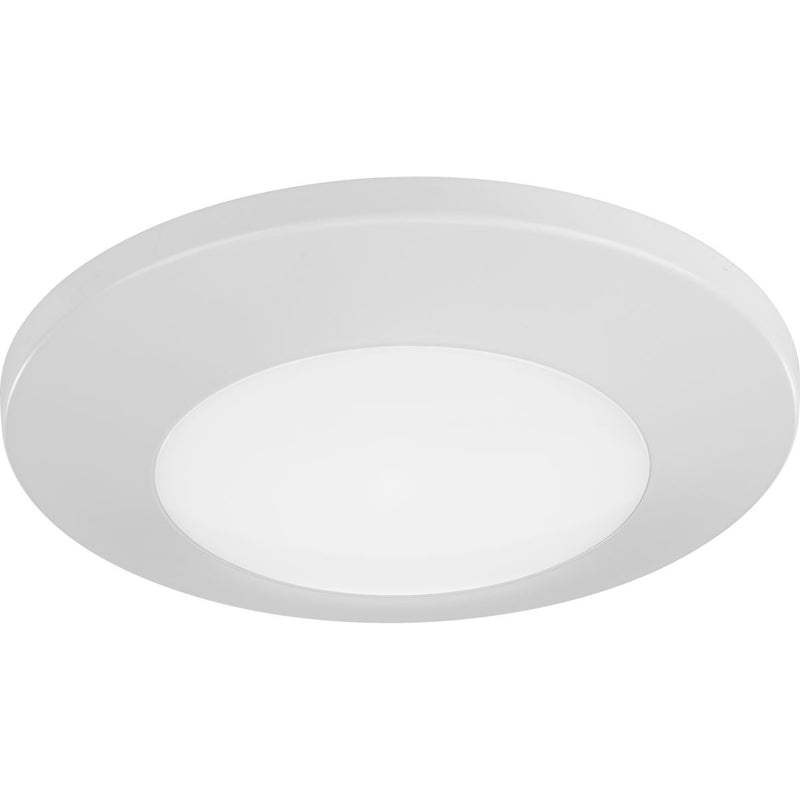

Progress P810014-028-30 7-1/4" Emblem Collection Surface Mount LED in White

SKU PROG_P810014-028-30
✔ Authorized Progress Dealer
✔ Shipment Protected from Damage and Theft
✔ Hassle-Free Return Process Learn More


Revel in the brilliant combination of easy installation and a sleek, modern lighting aesthetic offered by our�Emblem�Surface Mount LED Collection. A symbol of clean, classic designs with smooth, eye-appealing curvature,�Emblem�provides you with familiar lighting shapes and functional features engineered for both outstanding performance and unparalleled longevity. An excellent choice for general ambient lighting, each polished design features a smooth, slightly tapered trim ring surrounding a single, integrated LED light source. Each trim ring is available in two different sizes and finishes to help meet your unique design needs. Enjoy the unmatched level of glare control offered by the fixture�s diffused polycarbonate lens that also hides any unwanted LED pixilation. Each light fixture is home to an integrated AC LED light engine that seamlessly installs to a variety of ceiling pan junction boxes to give you added flexibility when it comes to creating your design vision. The surface mount will also satiate the cravings of any environmentally-aware and cost-savvy buyer with the fixture's long-lasting, 50,000-hour LED life span and 80% energy savings.


-- Integrated AC LED technology 3000K, 90 CRI, 1000 lumens (delivered)
-- Die-cast aluminum construction with a powder coat paint finish
-- Diffused polycarbonate lens controls direct glare from the LEDs
-- Simple snap in installation for J-Box with 1/2" minimum depth
-- Lumen output and distribution comparable to a 75W incandescent lamp
-- Dimmable to 10% brightness with many Electronic Low Voltage (ELV) & Forward Phase (TRIAC) dimmers
-- CSA Listed for Wet Location applications
-- Meets California Title 24 - JA8 - 2019
-- Maximum 30 luminaires on a circuit (without dimmer).
-- 50,000 hour rated lifetime


Product Type: Lighting Fixtures
Collection Name: Emblem
Part Number: P810014-028-30
Finish: Satin White
Glass: Diffused
Shade Material: Polycarbonate


Fixture Weight (lb): 1.02
Height (in): 1-3/8
Length (in): 7-5/16
Width (in): 7-5/16"
Wire Length (in): 6


Bulb Qty: 1
Bulb Wattage: 15.5 W
Bulb Included: Yes
Color Temp: 3000 K
Lumens: 1080 lm
Efficiency: 69.7 Lum/Watt
CRI: 90
Life (hours): 50000
Bulb Type: LED
Bulb Base: Integrated
Voltage: 120 V
Dimming Protocol: Triac/Forward Phase;ELV/Reverse Phase


Frequency Rating: 60 Hz
ENERGY STAR Certified: Yes
Certified Listed: cCSAus
Certified Listed Location: Wet Location Listed
Material: ADC12
Title 24: Yes
Warranty Length: 5 year warranty
Country of Origin: CN


Carton Height (in): 8.0
Carton Length (in): 7.75
Carton Width (in): 2.5
Carton Weight (lb): 1.17
Ship Method: UPS/FedEx
UPC: 785247237524
