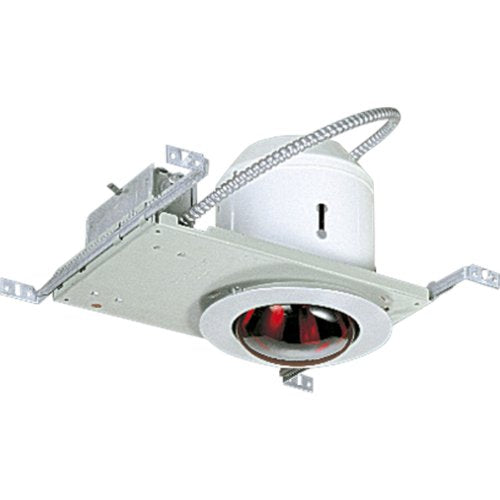

Progress P6952-16TG Recessed Bath Heater Light

Product Description:

Heater light. Complete with housing, trim and 26" adjustable bar hangers. UL listed for damp locations. Therma-Gard thermal protection.

Features

-- Steel construction.
-- Full wrap around plaster frame.
-- Suitable for remodel application as per instruction sheet provided with fixture.
-- Universal junction box with snap out sides.
-- Removable housing or field inspection of wiring.
-- Ground Pigtail.
-- 1/2" & 3/4" knock outs for rigid or BX fittings.
-- Rated for 8 #12 90 degree conductors (4 in, 4 out).
-- Maximum ceiling thickness 1-1/2".
-- 26" bar hangers span 24" T-bar spacing
-- Captive.
-- Lock to secure housing.
-- Medium base porcelain socket with nickel -plated brass screw shell.
-- Socket mounted in fixed postion.
-- Non-IC rated
-- Trim: Aluminum construction with light satin finish.
-- Trim: Open Trim
-- Trim installs with coil springs and fits tight to ceiling.

Details

Product Type: Recessed Lighting
Category: Housing
Collection Name: Recessed - CompleteHousing & Trim
Part Number: P6952-16TG
Finish: Satin Aluminum

Measurements

Fixture Weight (lb): 5.0
Height (in): 13
Length (in): 8-3/8
Width Diameter (in): 8-3/8
Width (in): 7-3/4"
Depth (in): 7-3/4
Max Overall Height (in): 6-7/8

Lamping

Bulb Qty: 1
Bulb Wattage: 250 W
Bulb Included: No
Bulb Type: R40
Bulb Base: E26
Voltage: 120 V

Specifications

Certified Listed: UL-CUL
Certified Listed Location: Damp Location Listed And Feed Through Branch Wiring
Material: Steel
Warranty Length: 1-year Limited Warranty
Country of Origin: MX

Shipping

Carton Height (in): 9.0
Carton Length (in): 14.125
Carton Width (in): 10.25
Carton Weight (lb): 5.75
Ship Method: UPS/FedEx
UPC: 785247695225
