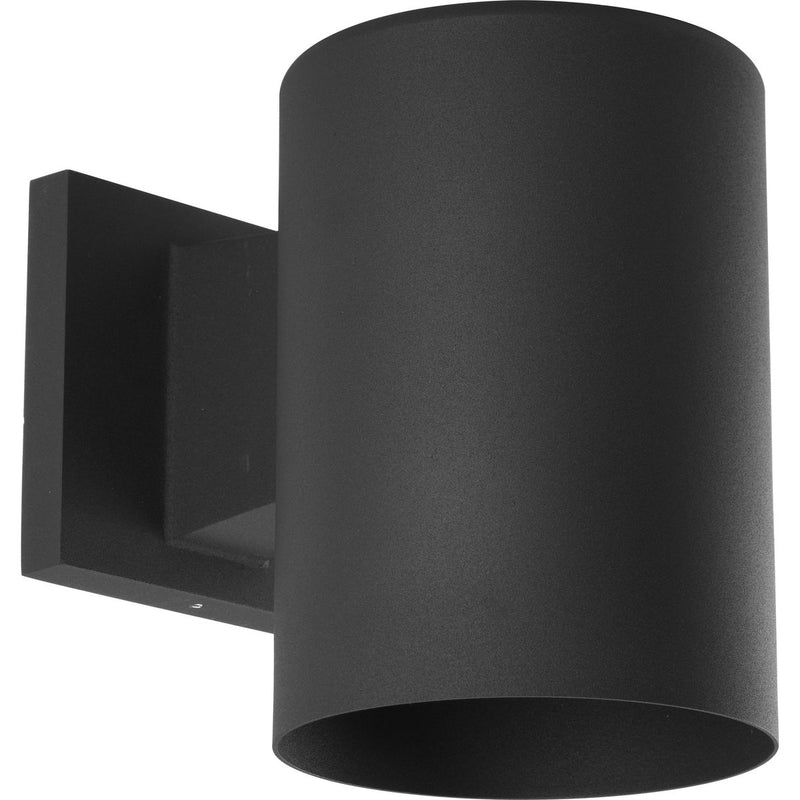

Progress P5674-31/30K 5" Black LED Outdoor Wall Cylinder

Product Description:

5" LED wall cylinder/wall lantern in Black. The P5674 Series are ideal for a wide variety of interior and exterior applications including residential and commercial. The Cylinders feature a 120V alternating current source and eliminates the need for a traditional LED driver. This modular approach results in an encapsulated luminaire that unites performance, cost and safety benefits. With over 484 lumens the LED Cylinders unite performance, energy savings and safety benefits.

Features

-- Black finish.
-- Die-cast aluminum construction with durable powder coated finish
-- 484 lumens 24 lumens/watt (delivered)
-- 3000K color temperature, 90+ CRI
-- Meets California Title 24 high efficacy requirements for outdoor use only.
-- Dimmable to 10% with many ELV dimmers

Details

Product Type: Outdoor Lighting
Category: Outdoor
Collection Name: Cylinder
Part Number: P5674-31/30K
Finish: Black
Canopy Shape: Square
Room Type: Outdoor

Measurements

Fixture Weight (lb): 2.2
Height (in): 7-1/2
Length (in): 5
Width Diameter (in): 5
Width (in): 8"
Depth (in): 8
Height to Center (in): 2-1/2
Wire Length (in): 6
Backplate/Canopy Width (in): 4.5

Lamping

Bulb Qty: 1
Bulb Wattage: 16.9 W
Bulb Included: Yes
Color Temp: 3000 K
Lumens: 484 lm
Efficiency: 24 Lum/Watt
CRI: 90
Life (hours): 60000
Bulb Type: LED
Bulb Base: Module
Voltage: 120 V
Dimming Protocol: ELV/Reverse Phase
Dimming Range: 10%

Specifications

Frequency Rating: 60 Hz
Certified Listed: cCSAus
Certified Listed Location: Wet Location Listed
Material: Die Cast and Extruded Aluminum
Title 24: Yes
DarkSky: Yes, per photometry (not registered with IDA)
Warranty Length: 5-year Limited Warranty
Country of Origin: CN

Shipping

Carton Height (in): 8.75
Carton Length (in): 9.0
Carton Width (in): 6.62
Carton Weight (lb): 2.64
Ship Method: UPS/FedEx
UPC: 785247190225
