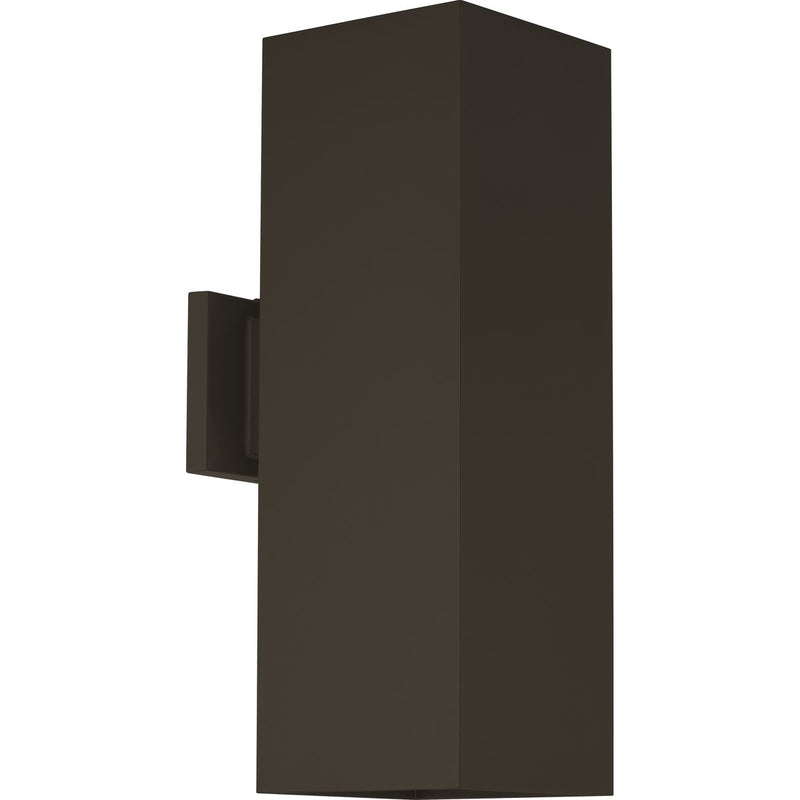

Progress P5644-20-30K 6" LED Square Up/Down Outdoor Wall Mount Fixture

Product Description:

6" LED Square Cylinder with heavy-duty aluminum construction, die-cast aluminum wall bracket. UL listed for wet locations. Powder coat for chipping and fading resistance. Antique Bronze finish. Wet location listed when used with P860047 top cover lens (sold separately).

Features

-- Antique Bronze finish.
-- Ideal for a wide variety of interior and exterior applications.
-- Die-cast aluminum construction with durable powder coated finish
-- 3731 lumens 61.8 lumens/watt per module (delivered)
-- 3000K color temperature, 90+ CRI
-- Wet location listed when used with P860047 top cover lens (sold separately)
-- Dimmable to 10% with many ELV dimmers
-- Meets California Title 24 for outdoor use only.

Details

Product Type: Outdoor Lighting
Category: Outdoor
Collection Name: LED Sq Cylinder
Part Number: P5644-20-30K
Finish: Antique Bronze
Canopy Shape: Square
Room Type: Outdoor

Measurements

Fixture Weight (lb): 7.35
Height (in): 18
Length (in): 6
Width Diameter (in): 6
Width (in): 8-7/8"
Depth (in): 8-7/8
Height to Center (in): 8
Wire Length (in): 6
Backplate/Canopy Height (in): 3.995
Backplate/Canopy Width (in): 4.03

Lamping

Bulb Qty: 2
Bulb Wattage: 29 W
Bulb Included: Yes
Color Temp: 3000 K
Lumens: 3731 lm
Efficiency: 61.8 Lum/Watt
CRI: 90
Life (hours): 60000
Bulb Type: LED
Voltage: 120 V
Dimming Protocol: ELV/Reverse Phase
Dimming Range: 10%

Specifications

Frequency Rating: 60 Hz
Certified Listed: cULus
Certified Listed Location: Damp Location Listed
Material: Die-Cast Aluminum
Title 24: Yes
Warranty Length: 5-year Limited Warranty
Country of Origin: CN

Shipping

Carton Height (in): 21.06
Carton Length (in): 11.8
Carton Width (in): 9.06
Carton Weight (lb): 7.35
Ship Method: UPS/FedEx
UPC: 785247202621
