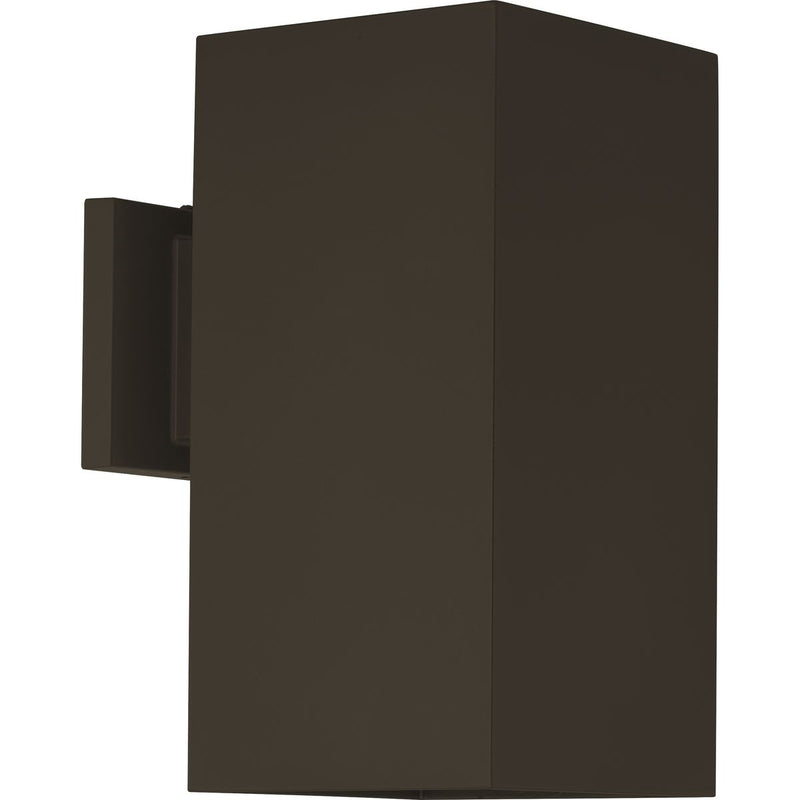

Progress P5643-20-30K 6" LED Square Outdoor Wall Mount Fixture

Product Description:

6" LED Square Cylinder with heavy-duty aluminum construction, die-cast aluminum wall bracket. UL listed for wet locations. Powder coat for chipping and fading resistance. Dark Sky compliant for down light only. The P5643 is ideal for indoor/outdoor applications. It can be used in residential or light commercial installations. Antique Bronze finish.

Features

-- Antique Bronze finish.
-- Ideal for a wide variety of interior and exterior applications.
-- Die-cast aluminum construction with durable powder coated finish
-- 3731 lumens 61.8 lumens/watt per module (delivered)
-- 3000K color temperature, 90+ CRI
-- Dimmable to 10% with many ELV dimmers
-- Meets California Title 24 for outdoor use only.

Details

Product Type: Outdoor Lighting
Category: Outdoor
Collection Name: LED Sq Cylinder
Part Number: P5643-20-30K
Finish: Antique Bronze
Canopy Shape: Square
Room Type: Outdoor

Measurements

Fixture Weight (lb): 6.43
Height (in): 12
Length (in): 6
Width Diameter (in): 6
Width (in): 8-7/8"
Height to Center (in): 7-1/2
Wire Length (in): 6

Lamping

Bulb Qty: 1
Bulb Wattage: 29 W
Bulb Included: Yes
Color Temp: 3000 K
Lumens: 1800 lm
Efficiency: 60 Lum/Watt
CRI: 90
Life (hours): 60000
Bulb Type: LED
Voltage: 120 V
Dimming Protocol: ELV/Reverse Phase
Dimming Range: 10%

Specifications

Frequency Rating: 60 Hz
Certified Listed: cULus
Certified Listed Location: Wet Location Listed
Material: Die-Cast Aluminum
Title 24: Yes
DarkSky: Yes, per photometry (not registered with IDA)
Warranty Length: 5-year Limited Warranty
Country of Origin: CN

Shipping

Carton Height (in): 14.96
Carton Length (in): 11.8
Carton Width (in): 9.06
Carton Weight (lb): 6.53
Ship Method: UPS/FedEx
UPC: 785247202591
