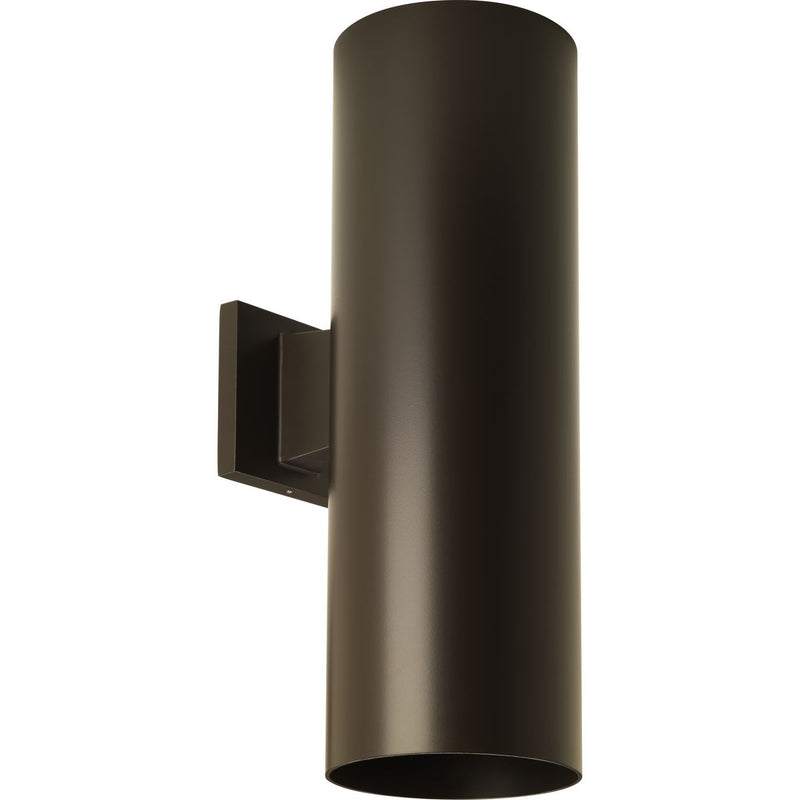

Progress P5642-20/30K 6" LED Outdoor Up/Down Wall Cylinder

Product Description:

6" uplight/downlight wall cylinders are ideal for a wide variety of interior and exterior applications including residential and commercial. The aluminum Cylinders offers a contemporary design with its sleek cylindrical form and elegant fade and chip resistant Antique Bronze finish, perfect for today's inspired exteriors. With over 2,150 lumens both up and down the LED Cylinders unite performance, energy savings and safety benefits. Provides even illumination up and down. Specify P860046 top cover lens for use in wet locations.

Features

-- Antique Bronze finish.
-- Powder coat finish.
-- Die-cast aluminum construction with durable powder coated finish
-- 2,150 lumens 30 lumens/watt per module (delivered)
-- 3000K color temperature, 90+ CRI
-- Meets California Title 24 high efficacy requirements for outdoor use only.
-- Dimmable to 10% with many ELV dimmers
-- Wet location listed when used with P860046 top cover lens.

Details

Product Type: Outdoor Lighting
Category: Outdoor
Collection Name: Cylinder
Part Number: P5642-20/30K
Finish: Antique Bronze
Canopy Shape: Square
Room Type: Outdoor

Measurements

Fixture Weight (lb): 5.9
Height (in): 18
Length (in): 6
Width Diameter (in): 6
Width (in): 8-7/8"
Depth (in): 8-7/8
Height to Center (in): 8
Wire Length (in): 6
Backplate/Canopy Depth (in): 2.94
Backplate/Canopy Height (in): 4.5
Backplate/Canopy Width (in): 4.5

Lamping

Bulb Qty: 2
Bulb Wattage: 29 W
Bulb Included: Yes
Color Temp: 3000 K
Lumens: 2150 lm
Efficiency: 30 Lum/Watt
CRI: 90
Life (hours): 60000
Bulb Type: LED
Bulb Base: Module
Voltage: 120 V
Dimming Protocol: ELV/Reverse Phase
Dimming Range: 10%

Specifications

Frequency Rating: 60 Hz
Certified Listed: cCSAus
Certified Listed Location: Damp Location Listed
Material: Die Cast and Extruded Aluminum
Title 24: Yes
Warranty Length: 5-year Limited Warranty
Country of Origin: CN

Shipping

Carton Height (in): 19.5
Carton Length (in): 10.25
Carton Width (in): 8.5
Carton Weight (lb): 8.23
Ship Method: UPS/FedEx
UPC: 785247190157
