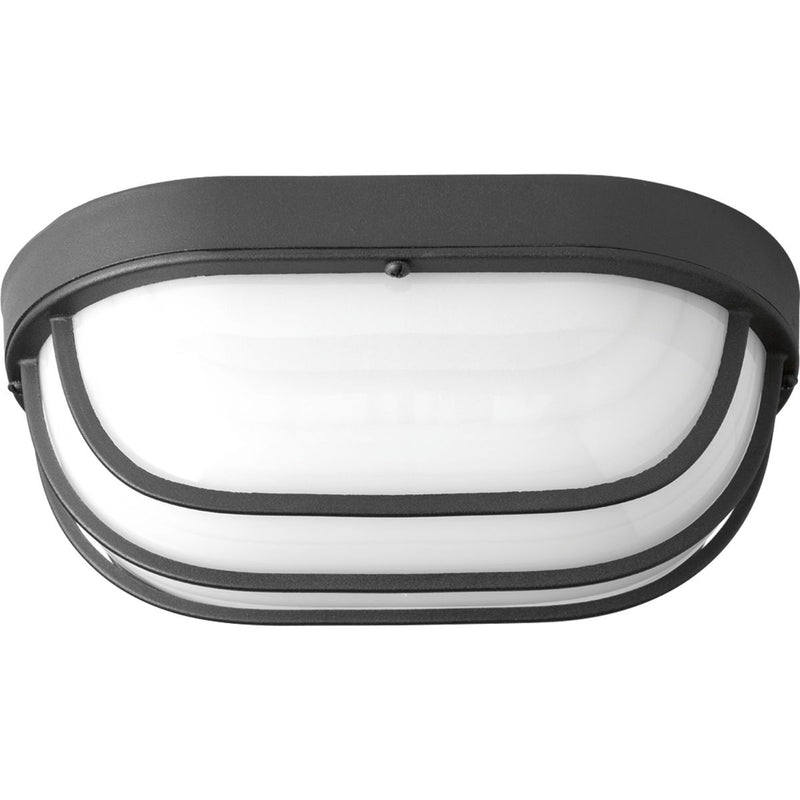

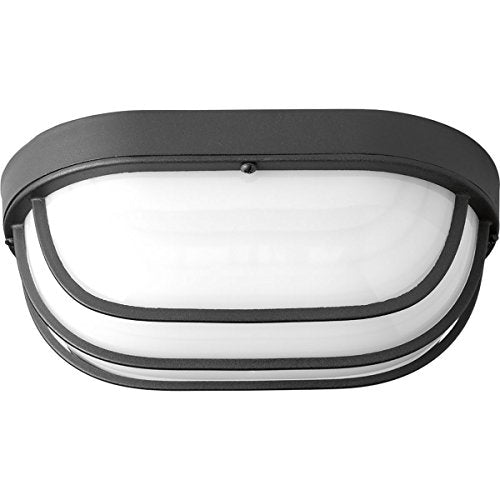

Progress P3649-3130K9 One-Light 10-1/2" LED Wall or Ceiling Bulkhead

Product Description:

One-Light 10-1/2" LED Wall or Ceiling Bulkhead. General purpose LED luminaire comprised of a die-cast aluminum frame and polycarbonate diffuser. Fixtures are impact resistant and can be mounted on wall or ceiling. Replaceable LED module. Black finish.

Features

-- Robust and energy efficient.
-- Offers various mounting options.
-- Can be widely adapted for indoor and outdoor applications.
-- Meets California Title 24 high efficacy requirements for outdoor use only.
-- 623 lumens 69.2 lumens/watt per module (source)
-- 3000K color temperature, 90+ CRI.

Details

Product Type: Outdoor Lighting
Category: Outdoor
Collection Name: Bulkheads LED
Part Number: P3649-3130K9
Finish: Textured Black
Glass: Frosted
Shade Material: Polycarbonate
Canopy Shape: Rectangle
Room Type: Outdoor

Measurements

Fixture Weight (lb): 1.23
Height (in): 4-1/2
Length (in): 10-1/2
Width Diameter (in): 10-1/2
Width (in): 6-3/8"
Depth (in): 4-1/2
Height to Center (in): 3-3/16
Wire Length (in): 6
Shade Height (in): 10.25
Shade Width (in): 3.4375
Shade Length (in): 6.125
Backplate/Canopy Depth (in): 1.25
Backplate/Canopy Height (in): 6.375
Backplate/Canopy Width (in): 10.5

Lamping

Bulb Qty: 1
Bulb Wattage: 9 W
Bulb Included: Yes
Color Temp: 3000 K
Lumens: 517 lm
Efficiency: 63 Lum/Watt
CRI: 90
Life (hours): 60000
Bulb Type: LED
Bulb Base: Module
Voltage: 120 V
Dimming Protocol: ELV/Reverse Phase

Specifications

Frequency Rating: 60 Hz
ENERGY STAR Certified: Yes
Certified Listed: cCSAus
Certified Listed Location: Wet Location Listed
Material: Aluminum
Title 24: Yes
Warranty Length: 5-year Limited Warranty
Country of Origin: CN

Shipping

Carton Height (in): 5.5
Carton Length (in): 12.0
Carton Width (in): 7.37
Carton Weight (lb): 2.29
Ship Method: UPS/FedEx
UPC: 785247192588
