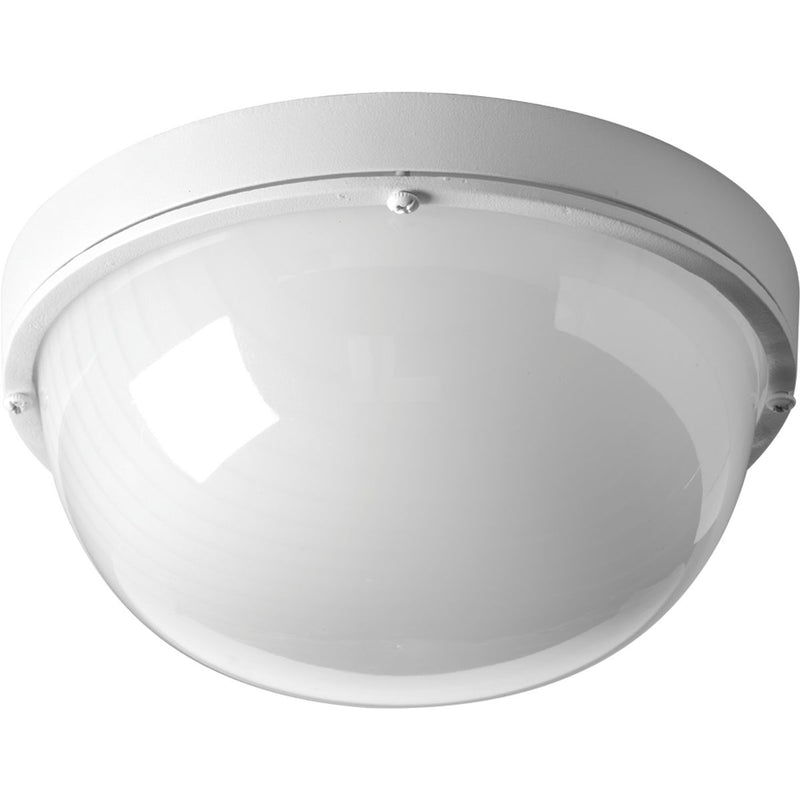

Progress P3648-3030K9 One-Light 9-1/2" LED Wall or Ceiling Bulkhead

Product Description:

One-Light 9-1/2" LED Wall or Ceiling Bulkhead. General purpose LED luminaire comprised of a die-cast aluminum frame and polycarbonate diffuser. Fixtures are impact resistant and can be mounted on wall or ceiling. Replaceable LED module. White finish.

Features

-- Robust and energy efficient.
-- Offers various mounting options.
-- Can be widely adapted for indoor and outdoor applications.
-- Meets California Title 24 high efficacy requirements for outdoor use only.
-- 1,211 lumens 71.2 lumens/watt per module (source)
-- 3000K color temperature, 90+ CRI.

Details

Product Type: Outdoor Lighting
Category: Outdoor
Collection Name: Bulkheads LED
Part Number: P3648-3030K9
Finish: White
Glass: White
Shade Material: Polycarbonate
Canopy Shape: Round
Room Type: Outdoor

Measurements

Fixture Weight (lb): 1.94
Height (in): 4-1/2
Length (in): 9-1/2
Width Diameter (in): 9-1/2
Width (in): 9-1/2"
Depth (in): 4-1/2
Height to Center (in): 4-9/16
Wire Length (in): 6
Shade Height (in): 3.625
Shade Width (in): 9.1875
Shade Length (in): 9.1875
Backplate/Canopy Depth (in): 9.125
Backplate/Canopy Height (in): 1.0
Backplate/Canopy Width (in): 9.125

Lamping

Bulb Qty: 1
Bulb Wattage: 17 W
Bulb Included: Yes
Color Temp: 3000 K
Lumens: 1107 lm
Efficiency: 64.4 Lum/Watt
CRI: 90
Life (hours): 60000
Bulb Type: LED
Bulb Base: Module
Voltage: 120 V
Dimming Protocol: ELV/Reverse Phase
Dimming Range: 10%

Specifications

Frequency Rating: 60 Hz
ENERGY STAR Certified: Yes
Certified Listed: cCSAus
Certified Listed Location: Wet Location Listed
Material: Aluminum
Title 24: Yes
Warranty Length: 5-year Limited Warranty
Country of Origin: CN

Shipping

Carton Height (in): 5.62
Carton Length (in): 11.0
Carton Width (in): 11.0
Carton Weight (lb): 2.75
Ship Method: UPS/FedEx
UPC: 785247192557
